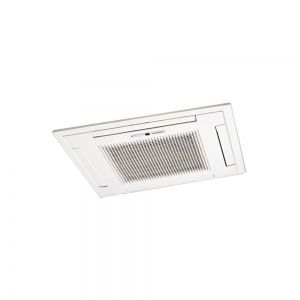

4.0 TR O GENERAL CASSETTE (AUG54A)

Tonnage

TR

4.0

Capacity

Watts

13900

BTU/hr

47428

Moisture removal

ltr/hr

5.5

Airflow rate - High

m³/h

1780

cfm

1048

Power supply

Volts/Ø/Hz

380 - 415 / 3 / 50

Running Current

Amps

9

Power Consumption

Watts

5200

EER

W/W

2.67

Indoor Unit Dimensions HxWxD

mm

296 x 830 x 830

Indoor Unit Net Weight

Kg

40

Grille

mm

30 x 940 x 940

Outdoor Unit Dimensions HxWxD

mm

1152 x 940 x 370

Outdoor Unit Net Weight

Kg

112

Noise Level (Indoor Unit)

dB

38 dB

Connection Method

Indoor-Outdoor

Flare

Connection Pipe Size

Gas, Liquid (Inches)

3/4 , 3/8

Pipe Length Max(Pre-charged)

m

50(20)

Height Difference

m

30

Operating Temperature

Deg. C

55°C

Refrigerant

---

R22

Compressor

Rotary /Scroll

Scroll
