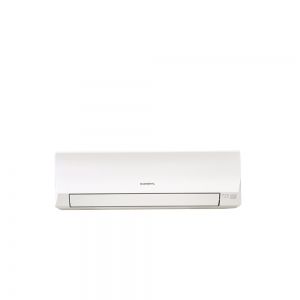

0.75 TR O GENERAL DC INVERTER (ASGG09JLCA)

Tonnage

TR

0.75

Capacity Range

KW

2.50 (0.9~2.85)

BTU/hr

8,530 (3,100~9,700)

Moisture Removal

ltr/hr

1.3

Air flow - High

m3/hr

790

cfm

465

Power supply

Volts/Ø/Hz

Running Current

Amps

3.8

Power Consumption

Watts

730

EER

W/W

3.42

Indoor Unit Dimensions H x W x D

mm

262 x 820 x 206

Indoor Unit Net Weight

Kg

7.0

Outdoor Unit Dimensions H x W x D

mm

535 x 663 x 293

Outdoor Unit Net Weight

Kg

24

Noise Level (Indoor Unit)

dB

22

Connection Method

Indoor-Outdoor

Connection Pipe Size (Gas/Liquid)

Gas, Liquid(Inches)

3/8, 1/4

Pipe Length Max (Pre-charged)

m

15 (10)

Height Difference

m

10M

Operating Temperature

Deg. C

46°C

Refrigerant

CFC Free

R410A

Compressor

Rotary

Rotary
