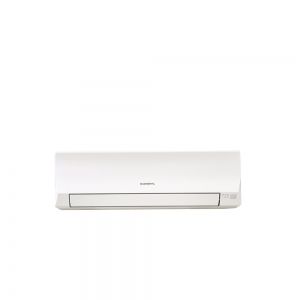

1.0 TR O GENERAL DC INVERTER (ASGG12JLCA)

tonnage

TR

1.0

Capacity Range

KW

3.50 (0.9~3.75)

BTU/hr

11,942 (3,100~13,600)

Moisture Removal

ltr/hr

1.8

Air flow - High

m3/hr

790

cfm

465

Power supply

Volts/Ø/Hz

Running Current

Amps

5.1

Power Consumption

Watts

1095

EER

W/W

3.2

Indoor Unit Dimensions H x W x D

mm

262 x 820 x 206

Indoor Unit Net Weight

Kg

7.0

Outdoor Unit Dimensions H x W x D

mm

535 x 663 x 293

Outdoor Unit Net Weight

kg

26

Noise Level (Indoor Unit)

dB

22

Connection Method

Indoor-Outdoor

Connection Pipe Size (Gas/Liquid)

Gas,Liquid(Inches)

3/8, 1/4

Pipe Length Max (Pre-charged)

m

15 (10)

Height Difference

m

10M

Operating Temperature

Deg. C

46°C

Refrigerant

CFC Free

R410A

Compressor

Rotary

Rotary
