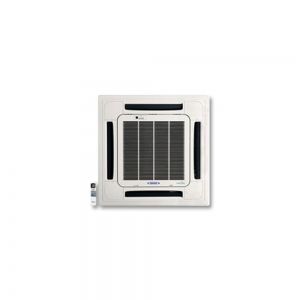

| Model name | Set | 2.00T Venture i Casst 1 Ph Rot. SAC (C2-N) |
|
| Power supply | V-Ph-Hz | 230-1-50 | |
| Capacity | Btu/h | 24000 | |
| Input | W | 2600 | |
| Rated current | A | 12.0 | |
| Compressor | Type | Rotary | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1180/1050/900 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 48/46/44 | |
| Casing dimension | Unit (WxHxD) | mm | 840×230×840 |
| Packing (WxHxD) | mm | 920×310×920 | |
| Panel dimension | Unit (WxHxD) | mm | 950×50×950 |
| Packing (WxHxD) | mm | 1030×105×1030 | |
| Casing weight | Net | kg | 28 |
| Gross | kg | 32 | |
| Panel weight | Net | kg | 5 |
| Gross | kg | 7 | |
| Outdoor air flow | m3/h | 3600 | |
| Outdoor noise level | dB(A) | 60 | |
| Outdoor dimension | Unit (WxHxD) | mm | 925×700×366 |
| Packing (WxHxD) | mm | 990×770×410 | |
| Outdoor weight | Net | kg | 54 |
| Gross | kg | 59 | |
| Refrigerant | Type | R22 | |
- These savings are based on 8Hrs of AC running for 365 Days
- The Compressor run hour is considered as 70% of the total hours which effectively means the AC runs for 5Hrs 36Minutes per Day
- Based on Electricity cost of Rs. 5/- per Unit
- Under test conditions
