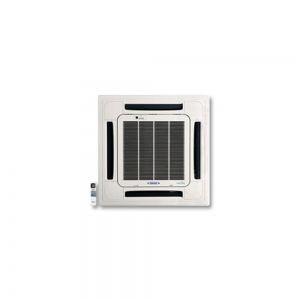

| Model name | Set | 3.0T Venture i Casst 3Ph Scroll SAC(C2-N) | |
| Power supply | V-Ph-Hz | 415-3-50 | |
| Capacity | Btu/h | 36000 | |
| Input | W | 3960 | |
| Rated current | A | 7.1 (Avg/Ph) | |
| Compressor | Type | Scroll | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1650/1480/1350 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 52/48/45 | |
| Casing dimension | Unit (WxHxD) | mm | 840×285×840 |
| Packing (WxHxD) | mm | 920×375×920 | |
| Panel dimension | Unit (WxHxD) | mm | 950×50×950 |
| Packing (WxHxD) | mm | 1030×105×1030 | |
| Casing weight | Net | kg | 31 |
| Gross | kg | 35 | |
| Panel weight | Net | kg | 5 |
| Gross | kg | 7 | |
| Outdoor air flow | m3/h | 5200 | |
| Outdoor noise level | dB(A) | 62 | |
| Outdoor dimension | Unit (WxHxD) | mm | 1050×995×400 |
| Packing (WxHxD) | mm | 1145×1120×475 | |
| Outdoor weight | Net | kg | 92 |
| Gross | kg | 100 | |
| Refrigerant | Type | R22 | |
- These savings are based on 8Hrs of AC running for 365 Days
- The Compressor run hour is considered as 70% of the total hours which effectively means the AC runs for 5Hrs 36Minutes per Day
- Based on Electricity cost of Rs. 5/- per Unit
- Under test conditions
