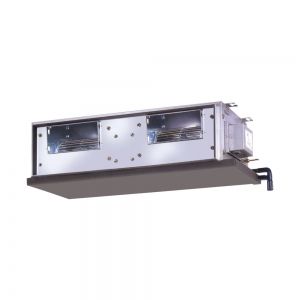

1.5 TON O GENERAL DUCTABLE (ARG18A)

Model - Indoor

ARG18A

Model - Outdoor

AOG18A

Cooling Capacity

Kw

5.4

Moisture Removal

BTU/hr

18500

l/hr

2.0

Room Air Circulation (High) - Indoor

m3/hr

1100

Input power

V/Hz

220-240/1/50

Running Current

A

9.5

Power Consumption

Kw

2.1

EER

Kw/Kw

2.57

Refrigerant Type

R22

Dimension HxWxD - Indoor

mm

217x953x595

Dimension HxWxD - Outdoor

mm

643x840x336

Connection Method

Flare

Connection Pipe Size (Small/Large)

mm

9.52/15.88

Max Pipe Length

m

25

Height Difference

m

15

Operating Temperature

C

52
