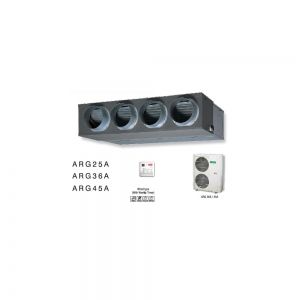

3.0 TON O GENERAL DUCTABLE (ARG36A)
Model - Indoor | ARG36A* | |
Model - Outdoor | AOG36A | |
Cooling Capacity | Kw | 10.5 |
Moisture Removal | BTU/hr | 35800 |
l/hr | 3.1 | |
Room Air Circulation (High) - Indoor | m3/hr | 2000 |
Input power | V/Hz | 380-415/3/50 |
Running Current | A | 6.6 |
Power Consumption | Kw | 3.9 |
EER | Kw/Kw | 2.64 |
Refrigerant Type | R22 | |
Dimension HxWxD - Indoor | mm | 270x1120x700 |
Dimension HxWxD - Outdoor | mm | 1152x940x370 |
Connection Method | Flare | |
Connection Pipe Size (Small/Large) | mm | 9.52/19.05 |
Max Pipe Length | m | 50 |
Height Difference | m | 30 |
Operating Temperature | C | 52 |
